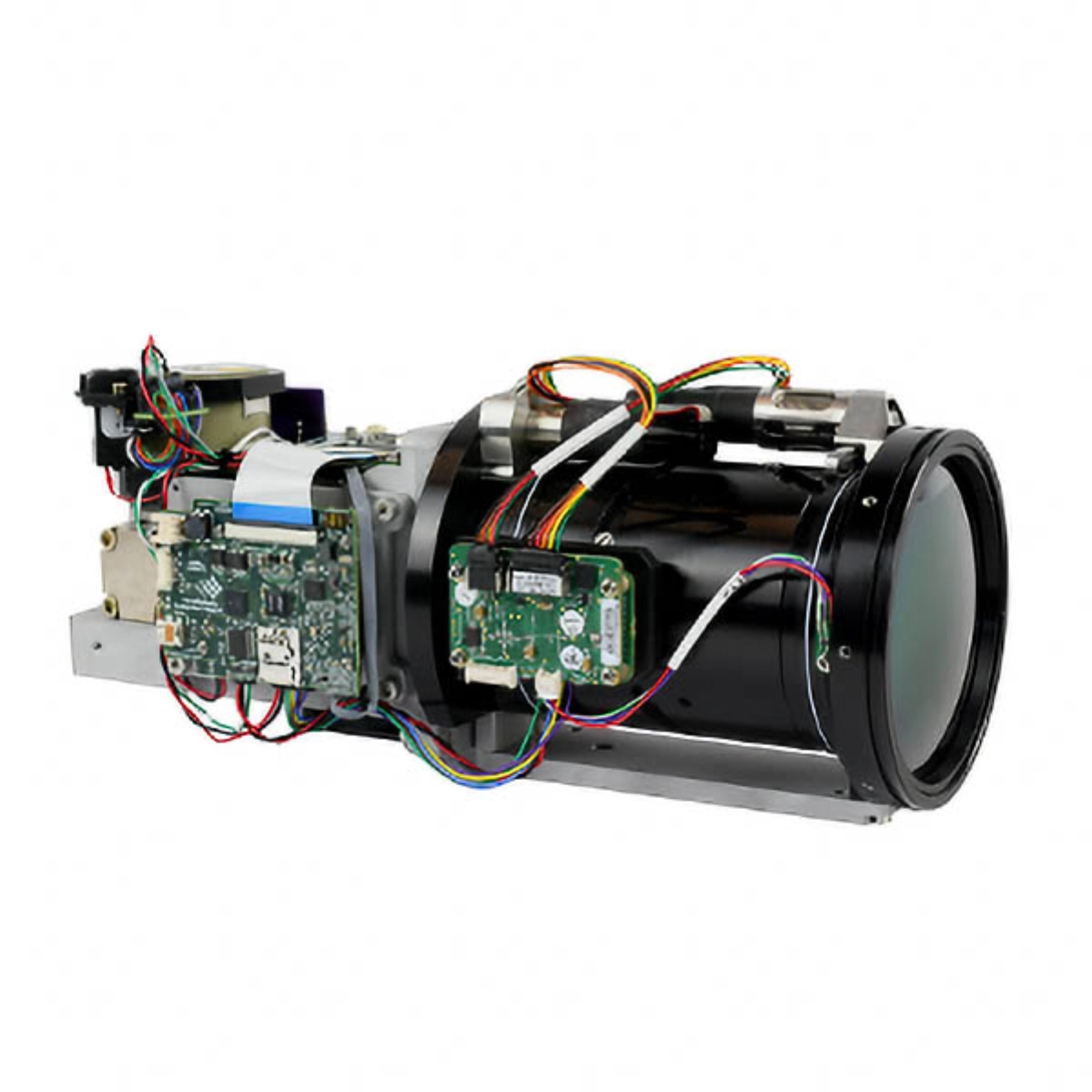

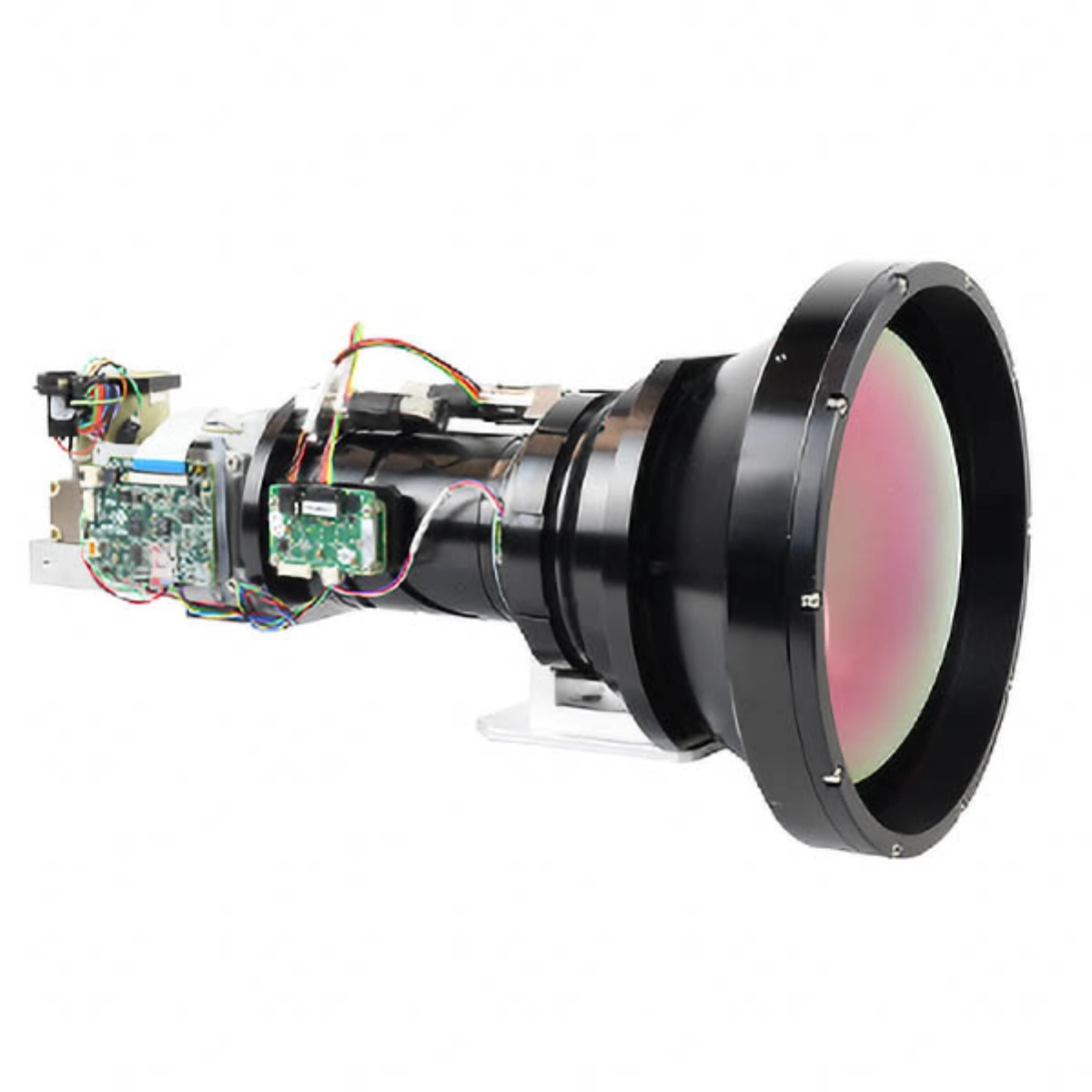

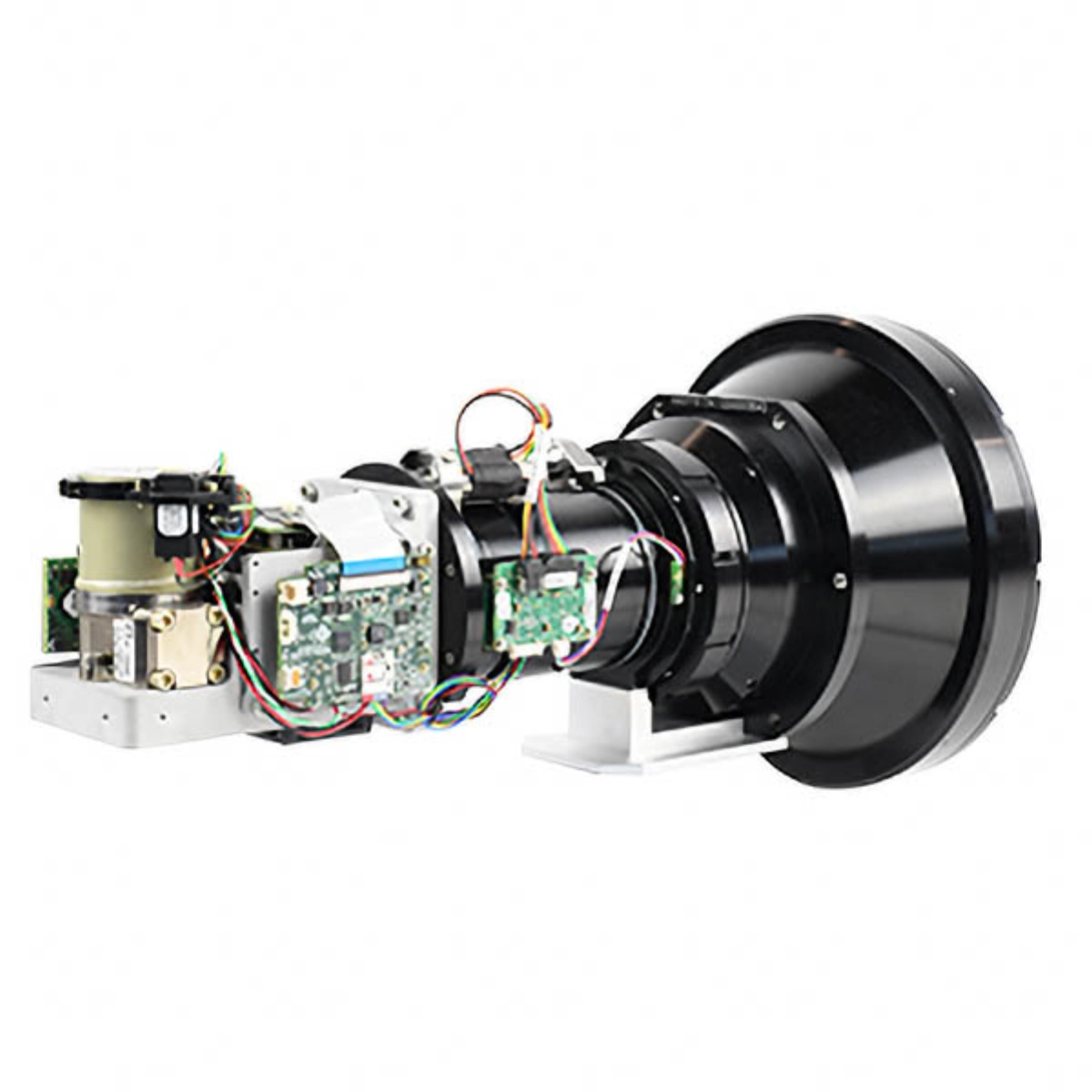

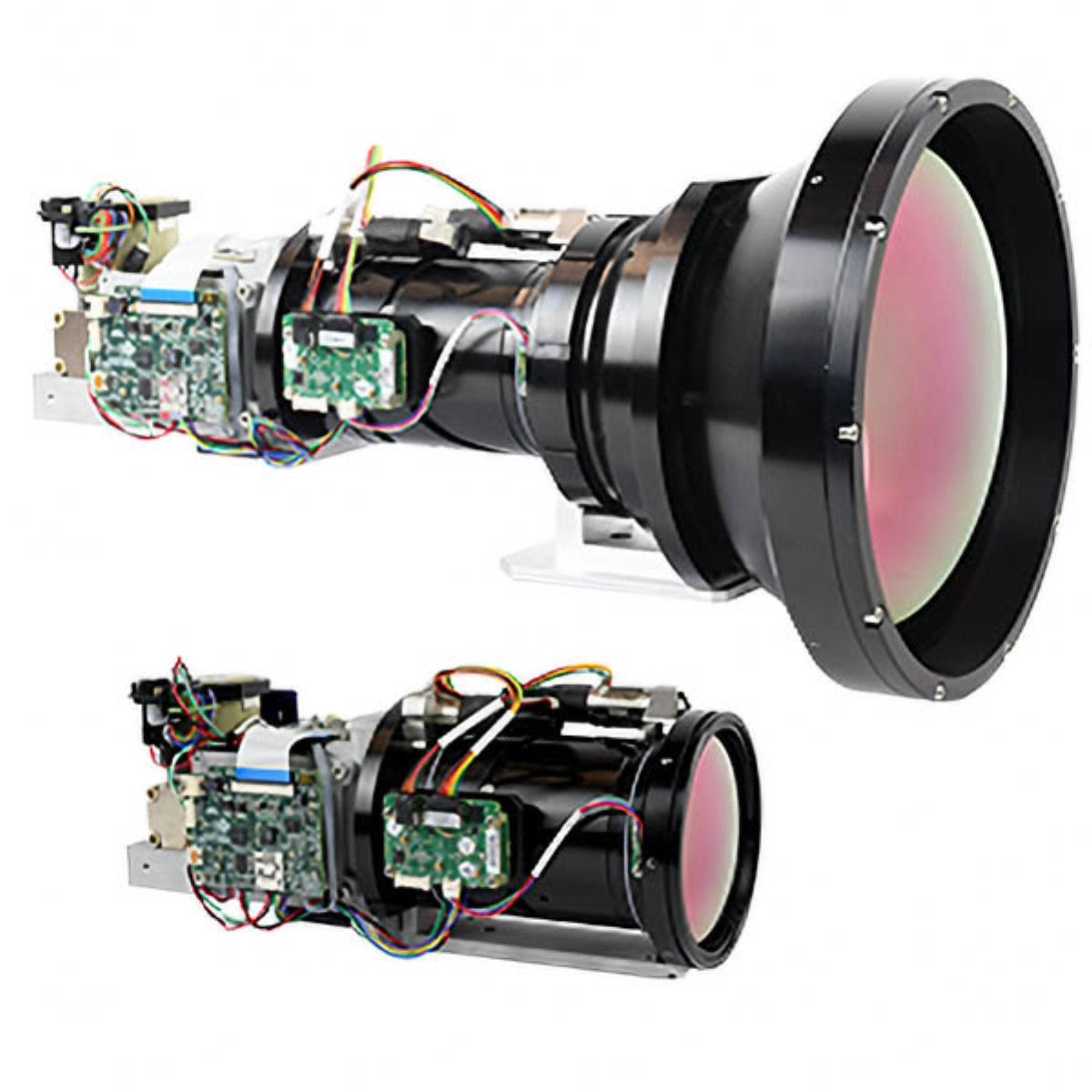

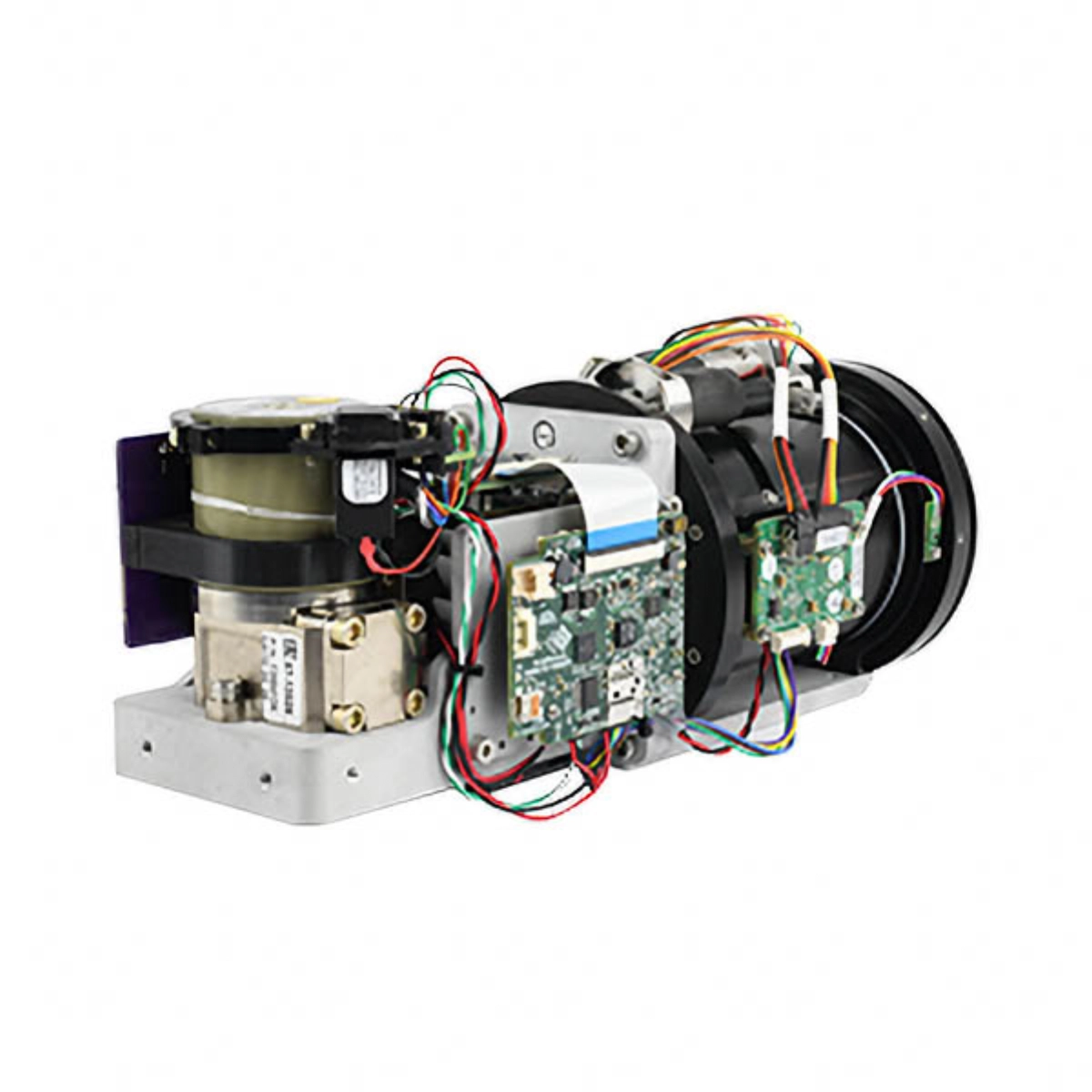

Ventus Hot 300, 690, 900

VGA Resolution MWIR with Long Life Cooler

Ventus HOT is a integration-ready mid-wave infrared camera core that combines cutting-edge HOT (high operating temperature) detector technology with a suite of continuous zoom optics and powerful image processing capabilities with onboard storage.

Technical Stats


Ventus Hot 300, 690, 900 Signature Features

Mid-Wave
Infrared
60HZ

Designed for critical long-range security and surveillance operations, Ventus HOT operates at temperatures far warmer than do traditional InSb MWIR detectors, which means decreased load on the cooling mechanism, faster cool-down times, longer overall cooler life and lower overall cost of ownership. The camera delivers crisp, clear imagery at 15 µm pixel pitch and 640 x 512 resolution, with 15-300mm, 35-690mm and 45-900mm, F4.0 lens models.

Ventus HOT is tuned for high atmospheric transmission with low absorption by suspended water vapor and CO2, meaning that it delivers the best imagery possible in a diversity of environmental conditions. Additionally, a powerful processing engine provides a wide range of enhancements and features, including electronic image stabilization, digital zoom, automatic/manual gain control, adaptive contrast control (CLAHE/LAP), stock and user-defined LUTs and more.

Digital video is offered via HDMI or SDI and H.264/H.265 encoded IP stream. Command is over RS422/RS232 serial and/or Ethernet using command and hardware interfaces that are standardized across much of Sierra-Olympia’s product line.

  • Simultaneous analog/digital output
  • Continuous Zoom with Auto Focus
  • Long Range Security and Surveillance
  • HOT MWIR for Extended Cooler Life

  • Ventus HOT 690 : House Demolition

  • Tech Talk DRI model test Ventus HOT 900mm Episode 2

  • TechTalk DRI model test Ventus HOT 900mm Episode 1

  • Ventus HOT 690: Sample clips from the long-range cooled MWIR zoom camera

  • Technical Video: Ventus HOT cooled mid-wave infrared camera series



Exceptional Guidance From Sales Through Support

Work with our amazing sales team to making sure you have the correct specifications and are purchasing the right camera for the job. After you’ve purchased the camera our world class support team can help troubleshoot any issues that may come up.
